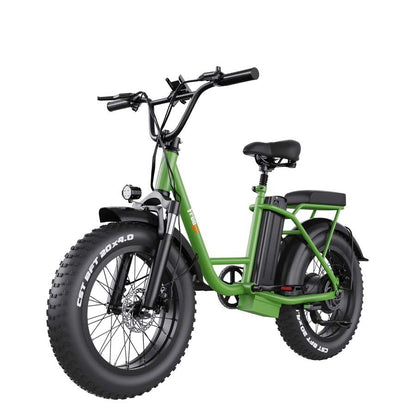

Freego FB-20X Step-thru Fat Tire Electric Bike
Free Installation & On Site Repair
30-Day Refund
Local Shops
Free Shpping
UL2849 CERTIFIED
- Battery: 48V, 25AH
- Motor: 750W
- Frame: Steel Pipe
- Range: 37-62 MI
- Deafult Top Speed: 20MPH ( Max Speed Adjustable to 28MPH)
- Class: 2/3
- Suspension: Front
What's in the box?
- 20'' x 4" Tire*2
- Bicycle Seat
- 48V, 25AH Battery
- Charger*1
- Pedals*2
- Front and rear light
- Bicycle frame+Rear rack
- Owner's manual
MULTI-SCENE SELECTIVITY
Adapt your ride with multi-scene options. Switch the rear trunk for luggage on trips or the basket for heavy loads. Customize your bike effortlessly to match every journey with versatility and convenience.
REMOVABLE BATTERY
Our e-bikes feature 48V 25Ah removable lithium battery, lightweight, durable, and eco-friendly. Easy to install and securely lockable, it allows convenient charging anywhere, keeping you ready for every ride.
Conquer Tough Terrain
Find your ideal riding position with our adjustable seat, designed for cyclists of all sizes. Enjoy optimal comfort and a perfect seating angle, ensuring every ride is smooth and enjoyable.
20'' TIRE WITH INNER TUBE
Tackle any terrain with ease on the FB-20X's 20'' x 4'' fat tires. The size and durability make navigating obstacles and impacts effortless, providing a stable and consistent riding experience.
PARAMETERS
- A - Handlebar Length: 27.1"/69cm
- B - Total Length: 65.7"/ 167cm
- C - Total Height: 42.9"/ 109cm
- D - Seat Length: 18.5"/ 47cm
- E - Top Tube Length: 13.7"/35cm
- F - Tire Width: 3.9"/ 10cm
- G - Wheel Diameter: 23.2"/59cm
- H - Seat Height: 28.7"/ 73cm
- I - Wheelbase: 44"/ 112cm
- J - Seat Height from Tire: 4.7"/ 12cm
- K - Head Tube Length: 21.6"/55cm
- L - Battery Length: 15.2"/ 38.5cm
SPECIFICATION
- Motor Power (Peak): 1200W Rearhub Motor
- Riding Range: 60-100KM (37mi-62mi)
- Display: LCD Display
- Net Weight: 27 KG
- Transmission Gears: Single Gear
- Wheel Size & Tires: 20 x 4" Air-filled tires with tube
- Rear Brake Light: Yes
- Package Size: 144*27*87cm
- Battery: 48V, 25AH (1200Wh)
- Frame: High-strength Steel Pipe
- Max Loading: 265 lbs (120kg)
- Charging Time: 8-13 H
- Brake System: Hydraulic Brake
- Suspension: Front Suspension Fork
- Charger Specification: Output: 54V, 2A; Input: 100-240V, 50/60Hz
- Suggested Rider Height: 5'4"-6'5"
