Torque sensors provide a more natural riding experience by providing assistance that is proportional to the rider's effort rather than simply providing a fixed level of assistance. This can improve the rider's experience by providing a more natural and intuitive ride, as well as improving the efficiency of the bike's electric motor.
Free Installation & On Site Repair
30-Day Refund
4-Year Warranty
Free Shpping

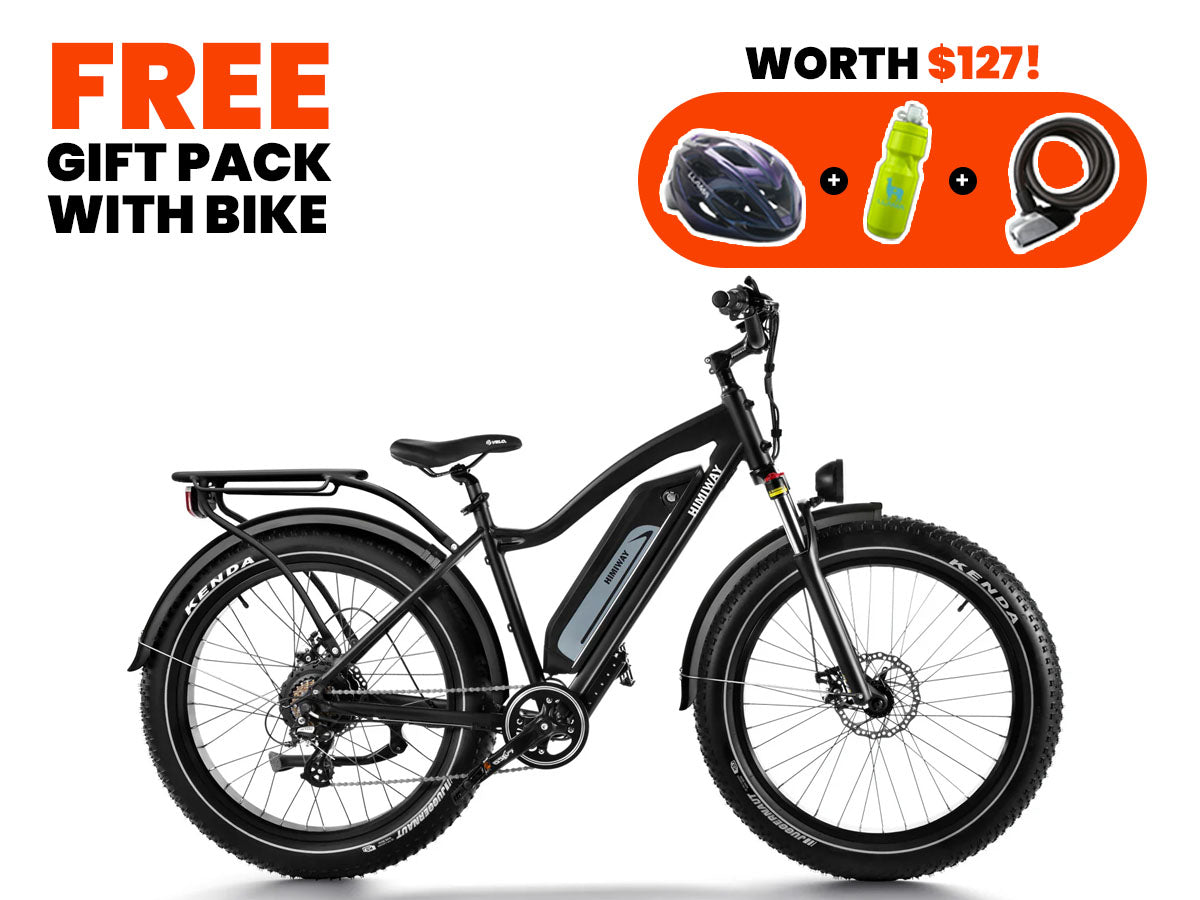

Himiway D3 (Cruiser) Long Range Fat Tire Electric Bike
TYPE:Ebike Only
Free Installation & On Site Repair
30-Day Refund
4-Year Warranty
Free Shpping
257 E Garvey Ave Monterey Park
- UL Safety Certified
- 720 Wh Samsung/LG Battery
- 50 Miles Per Charge (maximum)
- 750W Motor
- 20+ Mph Top Speed
- 350 lbs Payload Capacity
- 26x4.0 " Fat Tire
- 7-Speed Shimano Altus M310
- Mechanical Brakes 180MM
1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - Reach speeds of up to 20 mph, No pedaling required.
TORQUE SENSORS
High-Performance Samsung/LG Lithium-ion Battery
The single range can be up to 50+ miles per charge on pedal-assist mode and around 35 miles on pure electric power mode.
Fast Acceleration & Good Gradeability & Longer Lifespan
750W Upgraded Brushless Geared Hub Motor use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
ADVANCED TECHNOLOGY
Shimano 7 Speed Gear Shift System
180MM Mechanical Disc Brakes
Coil Suspension & Hydraulic Lockout Front Fork
Velo Saddle Seat
Durable Aluminum Crankset
Half Twist Throttle
48V Luminosity Spotlight
Shimano 7 Speed Gear Shift System
The Shimano 7 speed freewheel means you can shift to a larger cog for uphill riding and downshift to a smaller cog for high speed riding. In combination with the pedal-assist system, you can adjust the most suitable speed to complete your journey.
180MM Mechanical Disc Brakes
Both the front and rear 180MM mechanical disc brakes provide ample stopping power even in the harshest conditions.
Coil Suspension & Hydraulic Lockout Front Fork
Alloy front suspension fork has 80mm of travel, preload adjustment, and lockout.
Velo Saddle Seat
Comfortable saddle seat features a comfortable design specially made for pressure relief.
Durable Aluminum Crankset
Durable aluminum crankset guards to provide further protections to the chainring and help the chainstay to travel over rough terrain.
Half Twist Throttle
The Half-twist throttle prevents the accidental activation, protecting you from accidental injuries.
48V Luminosity Spotlight
The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.
CLEAR AT A GLANCE
LCD Display
The Backlit LCD display provides information on speed, mileage, power, etc.
Left Handle
Switch
Light ON/OFF
Info
Right Handle
Half twist throttle
Shimano gearbox
Bell
Geometry
Recommended Height: 5'3" ~ 6'5"
- A – total length75
- B – handlebar height46.5
- C – handlebar length28
- D – wheelbase45
- E – wheel diameter28.7
- F – minimum seat height22
- G – maximum seat height29
- H – chain stay length18.7
- K – effective top tube length23
- L – head tube length6.1
- N – standover heightST 27.9/ SO 30.3
Frame System
Frame
6061 Aluminum frame
Headset
Neco H148 28.6×44*44×30mm
Shock
Alloy front suspension fork with lockout and adjustment
Fork
Guide-26”-TNL-95 95mm travel
Wheel System
Front Wheel
MB015-92 13G*135*9mm MD242 26*87mm 12G*36
Rear Wheel
Rim: 3G*135*9mm MD242 26*87mm | Spoke: 12G*36 | Hub: 48v 750w Himiway hub motor
Tires
26*4.0
Power System
Battery
Samsung/LG 48V 15Ah
Motor
750W brushless gear motor
Display
LCD display with USB charger
Throttle
Half twist throttle
Control System
Sensors
Cadence sensor丨speed sensor丨brake sensor
Crankset
Crank arm: 4IXF-212FA 170mm | Chain ring: 46T
Freewheel
Shimano MF-TZ500-7 14-28T
Chain
KMC Z8.3 EPT 120L
Brake System
Front Brake
Tektro ARIES MD-M300 mechanical disc brakes
Rear Brake
Tektro ARIES MD-M300 mechanical disc brakes
Rotors
Tektro TR180-24 F:180mm R:180mm
Drivetrain
Groupset
Shimano Altus M310 7 speed
Stem
YC-C410 28.6*80*31.8mm
Handlebar
YC-B087 22.2*31.8*700mm
Seatpost
H202211DJ ISO-M 30.4*350mm
Saddle
TTZ032X
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Rage
35~60 miles
Controller
48V/22A
Charger
US standard 2.0 A smart charger
Rider height
5'3" ~ 6'5"
Weight
72lb.(with battery)
Max. payload capacity
350 lb.
