Torque sensors provide a more natural riding experience by providing assistance that is proportional to the rider's effort rather than simply providing a fixed level of assistance. This can improve the rider's experience by providing a more natural and intuitive ride, as well as improving the efficiency of the bike's electric motor.
Free Installation & On Site Repair
30-Day Refund
4-Year Warranty
Free Shpping
Himiway D5 Pro Premium All-terrain Electric Fat Bike + Free 4 Years Warranty
Color:
Compatible Accessories:
SHOW MORE
Free Installation & On Site Repair
30-Day Refund
4-Year Warranty
Free Shpping
257 E Garvey Ave Monterey Park
We are one of the largest authorized Himiway dealers. Our prices are always lower than Himiway’s official website. On top of the standard 2-year warranty, we give you an extra 2 years — that’s 4 years of total coverage. All customers who purchase from our website or physical stores are welcome to visit us anytime for service and repairs.
- UL Safety Certified
- 960 Wh Samsung/LG Battery
- 80 Miles Max Range
- 500 W Mid-Drive Motor
- 20+ Mph Top Speed
- 400 lb. Max Playload
- 26*4.0 " Fat Tire
- 9 Speed Shimano Derailleur
- Hydraulic Brakes
1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - Reach speeds of up to 20 mph, No pedaling required.
Dominate Every Landscape with the Himiway D5 Pro Terrain Electric Bike
Engineered for riders who laugh at “road closed” signs, the Himiway D5 Pro redefines what a mountain eBike can do. Whether you’re carving through rocky trails, plowing through snowdrifts, or hauling gear across sand dunes, this all-terrain electric bike transforms obstacles into playgrounds.
Why Adventure Riders Choose the D5 Pro Mountain eBike:
✅ 750W High-Torque Motor – Power through 30° inclines and loose terrain.
✅ 4” Fat Tires – Float over mud, snow, and sand like a tank with treads.
✅ 80-Mile Monster Range – 960Wh battery lasts for multi-day off-grid trips.
✅ Cargo Beast Mode – Rear rack + front basket haul 400 lbs of gear (or groceries).
TORQUE SENSORS
The advantages of a Torque Sensor
This can feel much more natural than a bike with a cadence sensor, as it replicates the feeling of riding that many of us are used to and simply amplifies your efforts. Pedal hard and you’ll get maximum assist. Back off your intensity, and the assistance system will do likewise.
Fast Acceleration & Good Gradeability & Longer Lifespan
750W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
960Wh High-performance Lithium-ion Battery
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
ADVANCED TECHNOLOGY
500 WMid-Drive Motor
130 NmTorque
Gain Extra Payload With 2X Thicker Frame
The Kenda All-terrain Fat Tire
Hydraulic Brakes

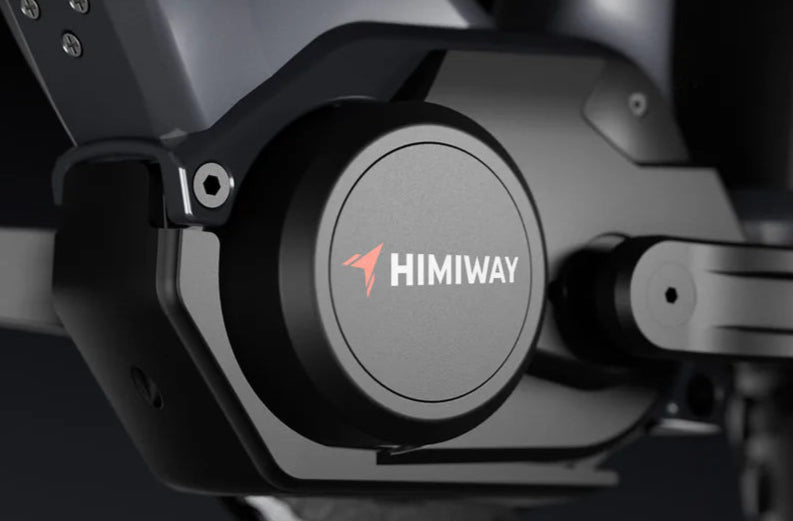

D5 Pro Mid-Drive
The torque-sensing mid-motor provides massive amounts of torque when powering up steep hills or accelerating quickly from a dead stop. With 1300W of peak motor power, you can easily conquer the most rugged terrains.

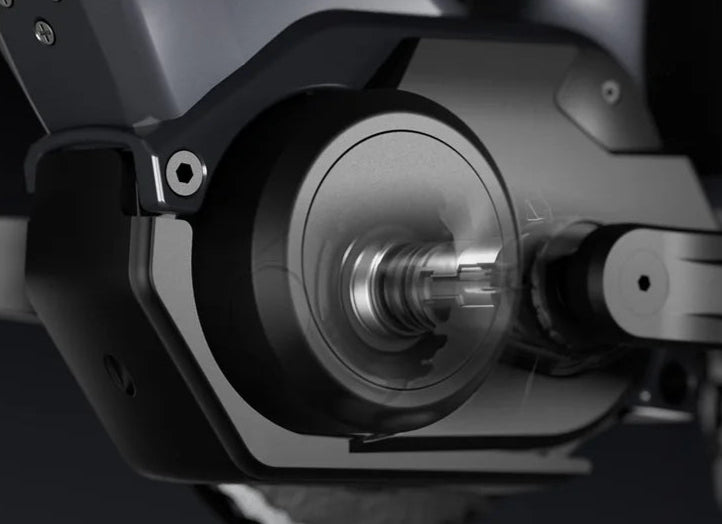

D5 Pro Torque Sensor
The D5 Pro torque sensor intelligently adjusts electric assist in real-time, ensuring efficient, controlled cycling. This precise modulation offers a smoother ride, conserving energy while enhancing rider safety and stability.

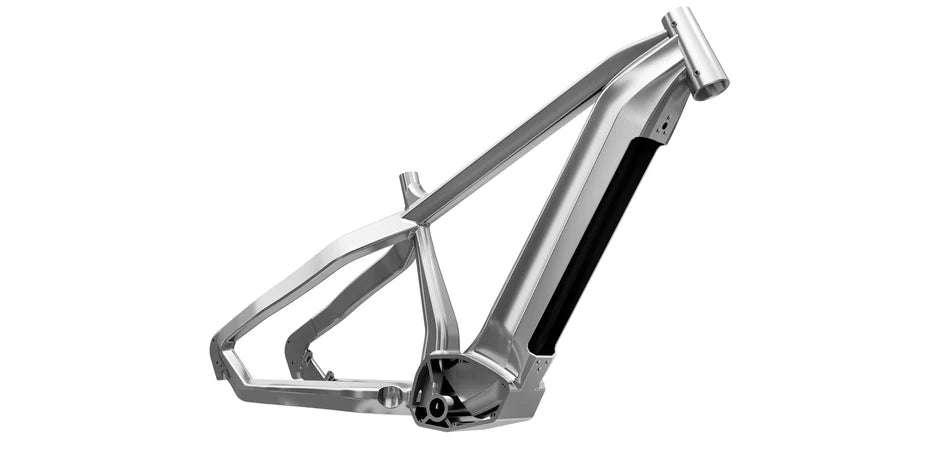

Gain Extra Payload With 2X Thicker Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
The Kenda All-terrain Fat Tire
26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Geometry
- A – total length 78.7
- B – handlebar height 47
- C – handlebar length 28
- D – wheelbase 49.2
- E – wheel diameter 28.7
- F – minimum seat height 20.9
- G – maximum seat height 31.4
- H – chain stay length 19
- I – frame stack 24.6
- J – frame reach 17.8
- K – effective top tube length 24.4
- L – head tube length 5.5
- M – head angle 65°
- N – standover height ST 22.4/ SO 31.1
Frame System
Frame
6061 Aluminum frame
Headset
Neco H156EM 28.6*44-56*30
Fork
TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
Wheel System
Front Wheel
Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W
Rear Wheel
Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor
Tires
Kenda 26*4.0
Power System
Battery
Samsung/LG 48V 20Ah
Motor
500W mid-drive motor
Display
LCD display with USB charger
Throttle
Thumb throttle
Control System
Sensors
Torque sensor | Speed sensor | Brake sensor
Crankset
Prowheel EB-01-242A-S1 170mm | 44T BCD104
Freewheel
Shimano MF-TZ500-7 14-28T
Chain
KMC Z8.3 EPT 120L
Brake System
Front Brake
Tektro HD-E3520 hydraulic brake
Rear Brake
Tektro HD-E3520 hydraulic brake
Rotors
Tektro TR180-52 F:180mm R:180mm
Drivetrain
Groupset
Shimano Altus M310 7 speed
Stem
Zoom TDS-C269-8FOV 31.8*90mm
Handlebar
Promax HB-3188 22.2*31.8*700mm
Seatpost
Himiway Seatpost
Saddle
Himiway Saddle
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Rage
60-80 miles
Controller
48V/22A
Charger
US standard 3.0 A smart charger
Rider height
5′3″ ~ 6′5″
Weight
79 lb. (with battery)
Max. payload capacity
400 lb.
